Brand Name :
Shi Zun
Model Number :
H-A133 Motherboard
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Packaging Details :
100mm* 80mm* 9mm
CPU :
Allwinner A133,quad-core Cortex-A53, Clock up to 1.6GHz
GPU :
PowerVR GE8300
RAM :
Standard 1GB LPDDR4,2GB optional
ROM :
Standard 8GB EMMC, up to 128GB
LVDS :
31Pin FPC MIPI interface, supporting up to 1080P resolution
MIPI :
30Pin dual-channel LVDS interface, supporting up to 1080P resolution
LCD RGB :
50Pin FPC LCD RGBinterface, supports conventional LCD screens within1024x 768
Headphone :
American standard four-stage headset integrated 3.5mm socket
Line Output :
Standard left and right channel line output
MIC Input :
Differential MIC input
Amplifier Output :
8 ohm·-6W dual- channel audio amplifier output
USB Host :
2 external USB2.0, 5 built-in USB2.0
USB OTG :
1 USB2.0 OTG interface
TF Card :
Self-elastic TF card socket, supports128GB TF card
Serial ports :
2-way TTL/RS232 serial port,1-way TTL/ RS485 serial ports
RTC :
Low power consumption RTC circuit with CR1220 battery
12C :
1-way I2C interface
Backlight :
1-way backlight control interface, supports switch and brightness adjustment
GPIO :
5-way GPIO signals
Access Control :
1-way SPDT access control relay signal (optional)
Infrared :
Standard infrared remote control receiver and infrared receiving pin header
Button :
Burn button and power button
Pilot lamp :
Green work indicator light
POE :
1-way POE power receiving interface
Ethernet :
1-way 10/100/1000Mbps adaptive Ethernet
Wi-Fi :
High-performance WiFi, supports 802.11 b/g/n/ac
Bluetooth :
High-performance Bluetooth, Support BT V4.0
DC Input :
12V DC socket, supports 9V-15V wide voltage input

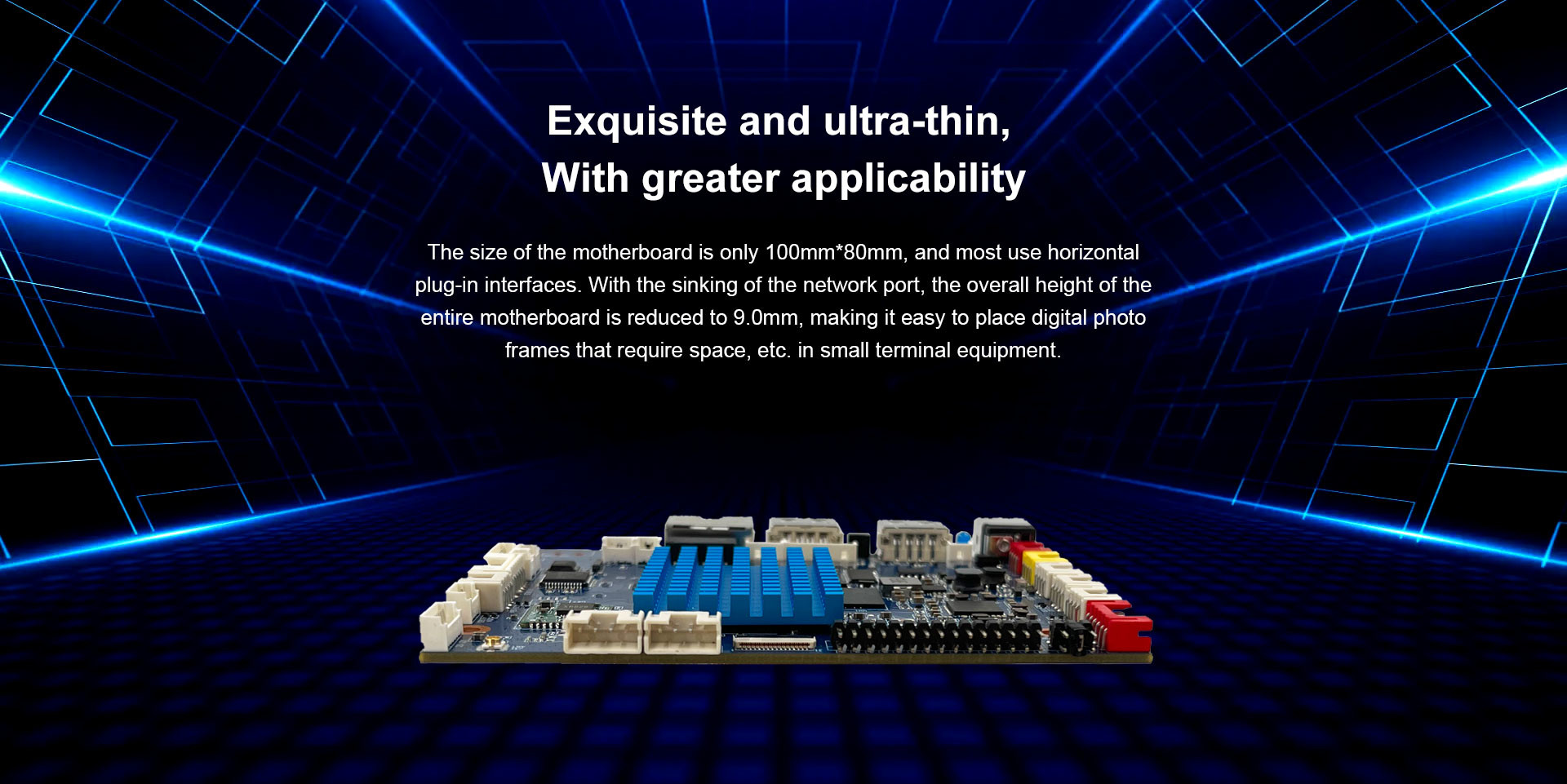

Size :
100mm* 80mm
Thickness :
9mm
Structure Compatibility :
Compatible with H0、H3、H-3399、H-3566、H-3568、H-T972、H-A133I
Operating Temperature :
0℃~70℃
Humidity :
0%-95% (non-condensing)

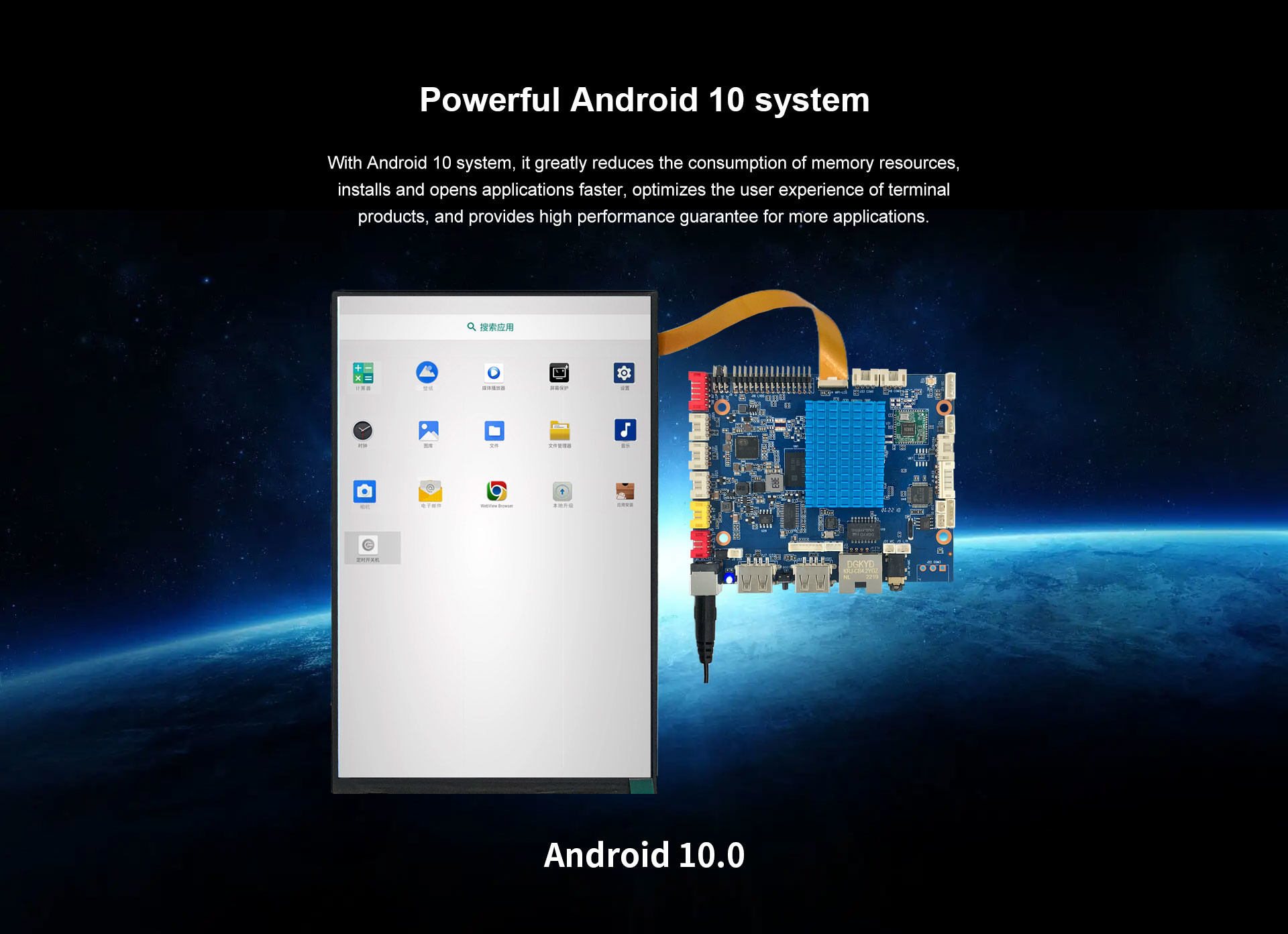

Android system :
Recommend Android 10.0
Linux System :
Linux Optional
